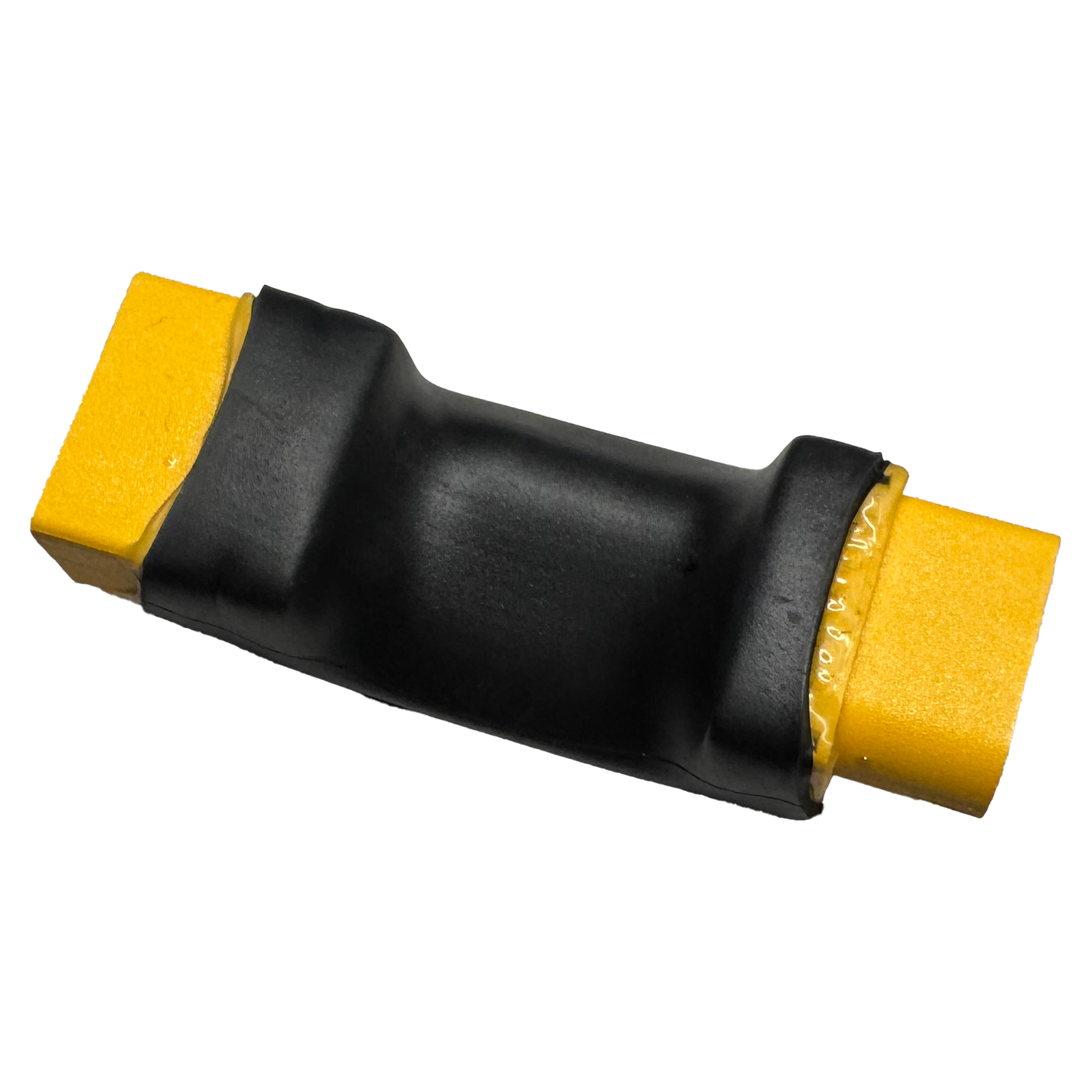

20s/30s Discharge Fuse

30s/126V rated. Indicated by purple heatshrink
50A fast blow fuse, the rating of the fuse is up to 30s however it has saved a 32s.

This fuse board uses 2x 126v 25a fuses. Assuming a dead short and cells putting out ~200A current, the fuse will blow in 0.3 seconds. You will never blow the fuse under a regular/heavy riding load.
Product dimensions: 50.2x16.3x18mm

20s/84V rated
60A fast blow fuse

Assuming a dead short and cells putting out ~200A current, the fuse will blow in 0.2 seconds. You will never blow the fuse under a regular/heavy riding load. Product dimensions: 48.5x16x12mm
