TwilightLord LED Data Signal to RS485 Adapter

The solution to flickering lights on your DIY Onewheel is finally here. Convert your single RGB/RGBW LED data signal wire that's prone to noise and interference into a

differential pair signal using TL's encoder/decoder boards. This turns light setups that are a flickery glitchy mess into stable, reliable lights. The board is super tiny so no issues getting one in your battery box to decode your taillight signal, even in a tight box setup.

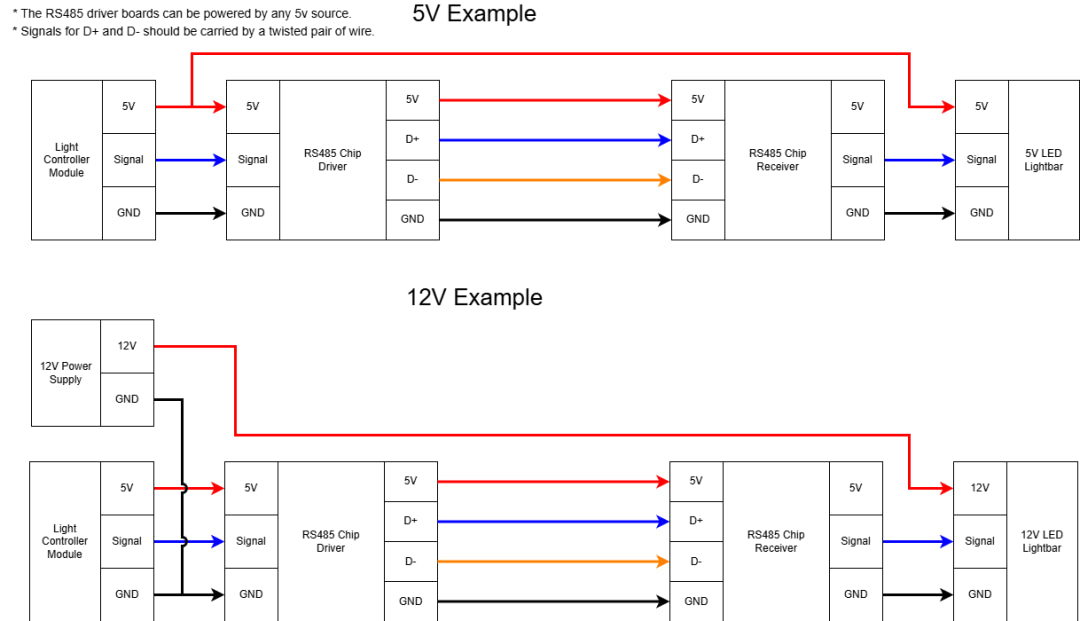

Two JST-GH connectors. 3 pin is your input for 5V (NOT LED POWER!)/LED signal/GND. 4 pin is 5V/D+/D-/GND output. DIP switch on board for configuring the transciever into Driver/Receiver mode. One driver and one receiver for each light used with it, which is why it is sold default as a set of 2.

DO NOT POWER YOUR REAR LEDS OFF THE ADAPTERS 5V! You will need separate LED power source. If you cannot power this adapter off of existing 5V in your rear box (e.g. CAN), you will need to run 5V for it alone. Do not feed this adapter 12V, it will not be very happy. Your harness will need to carry the D+/D-/GND, as well as your LED power.

Made by TwilightLord! 💜
